Small blue deluxe BMC pannel 200mm by 200mm

Sold out
Small blue deluxe BMC pannel 200mm by 200mm
£250.00

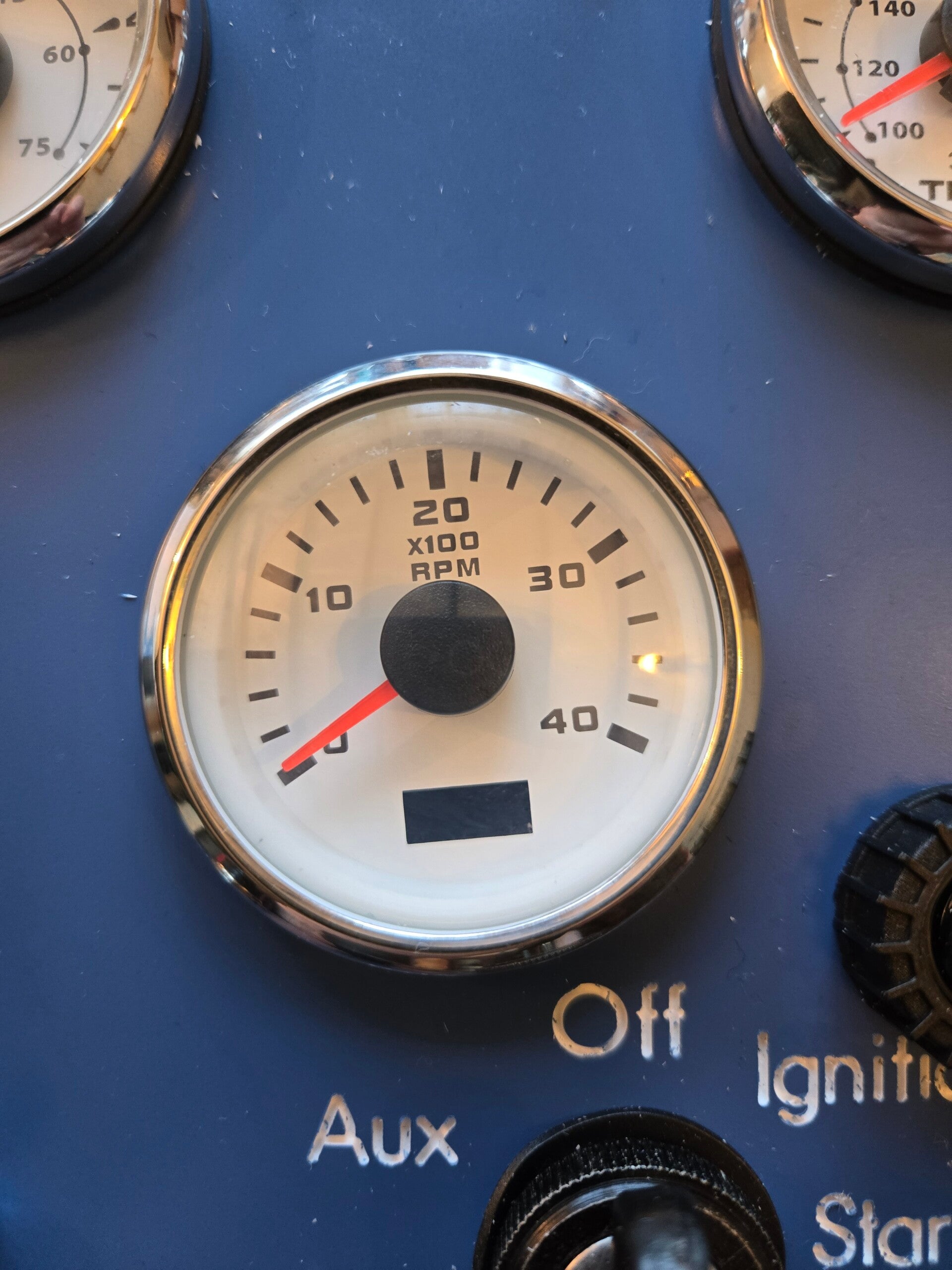

This is our small blue panel. Size is 200mm by 200mm and fitted with 3 gauges - Oil Pressure, Water temp and 4000 RPM tacho with engine hours meter.

The panel also has a ignition switch for On and Start, pluse a toggle switch for Engine preheat (if required) and Stop engine (if required )

There are also warning lights for Charge (with buzzer), Low oil pressure (with buzzer) and high engine water temp.

A second alternator charge lamp can be fitted if required please contact us.

The panel is wired to the BMC thornicroft wiring layout using a 11 way female wiring connector on a pigtail. Panel supplied with a pin wiring diagram.
